Name: CAMO Direct Mount Spider For Cannondale
SKU: 338912

Note: This is a ONLY. A is required to complete this system.

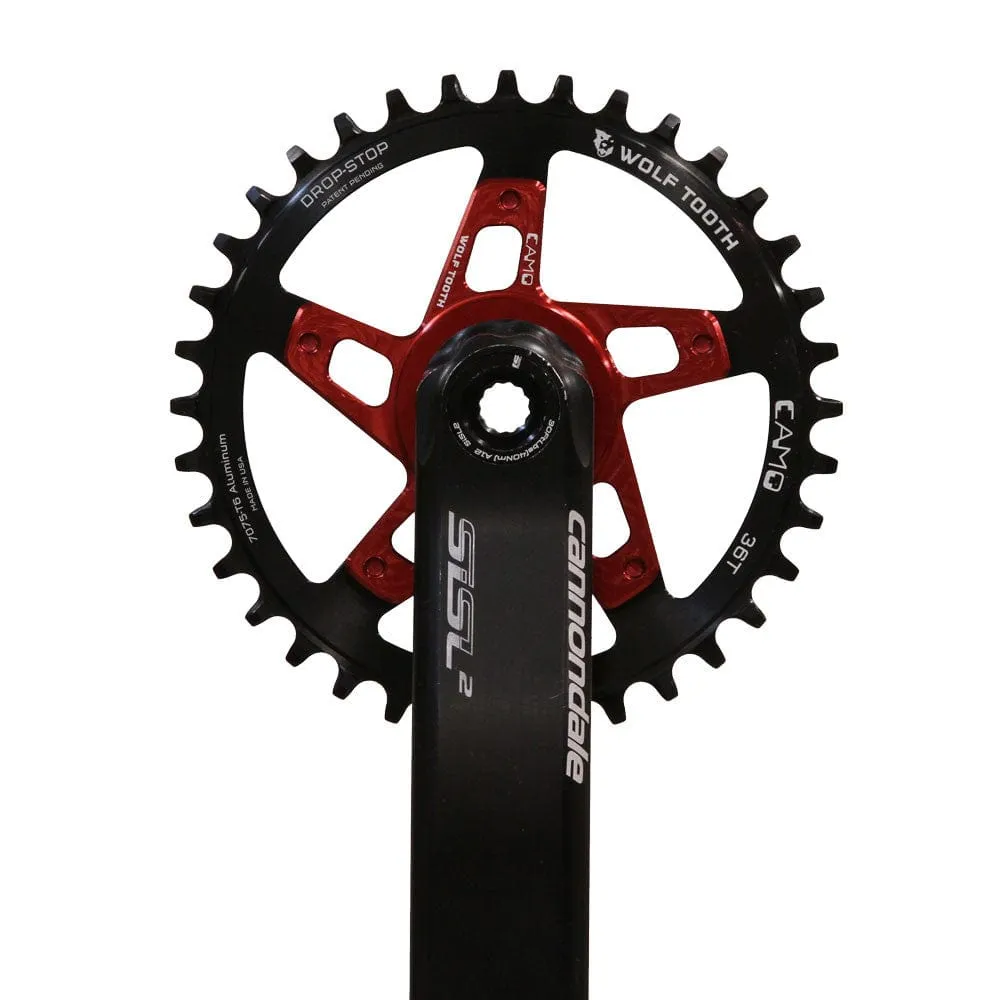

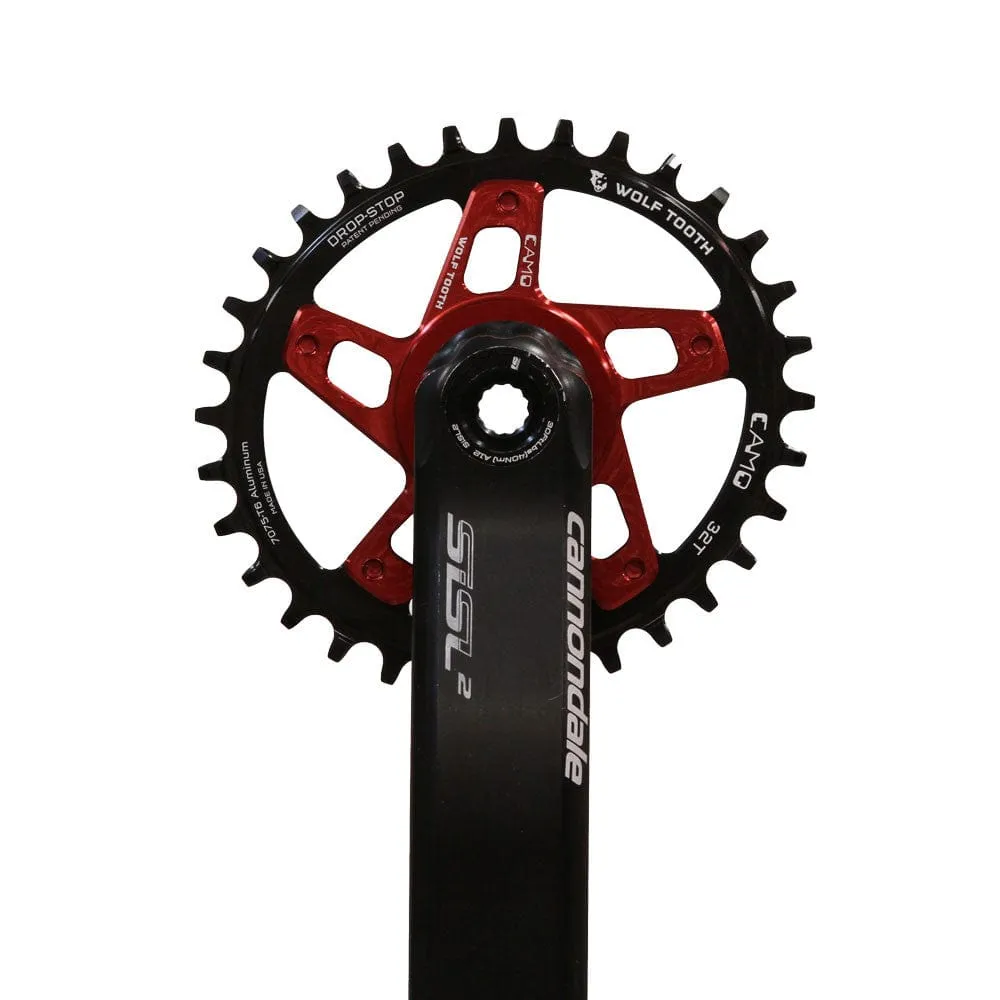

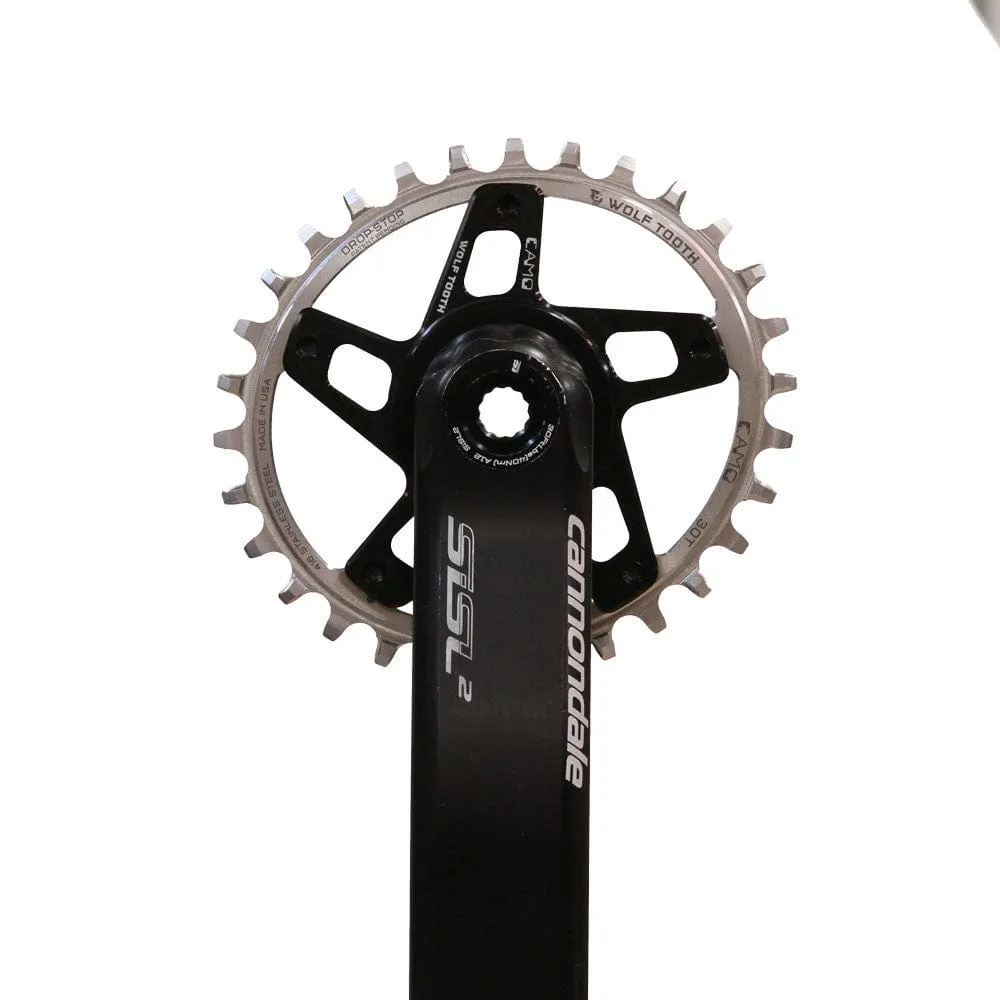

This is a spider for use with the Cannondale cranksets that have a removable spider.

The CAMO chainring system was created by Wolf Tooth engineers for Chainline And Material Optimization on direct mount style chainrings. The key advantages include:

Perfect chainline for wear and shifting precision
Optimal material usage for weight, stiffness, and wear
Spend less for chainring swapping by buying only the chainring, compared to chainrings that have an integrated spider
Swapping chainrings is very fast with only five small bolts and no nuts
Availability, as Wolf Tooth has many direct mount options: round or oval, stainless or aluminum, for several cranksets.
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability

Compatibility

This is a spider for use with the Cannondale cranksets that have a removable spider
3 different chainline options are available. The number and letter refer to the mm offset and direction from the mounting face to the centerline of the teeth:

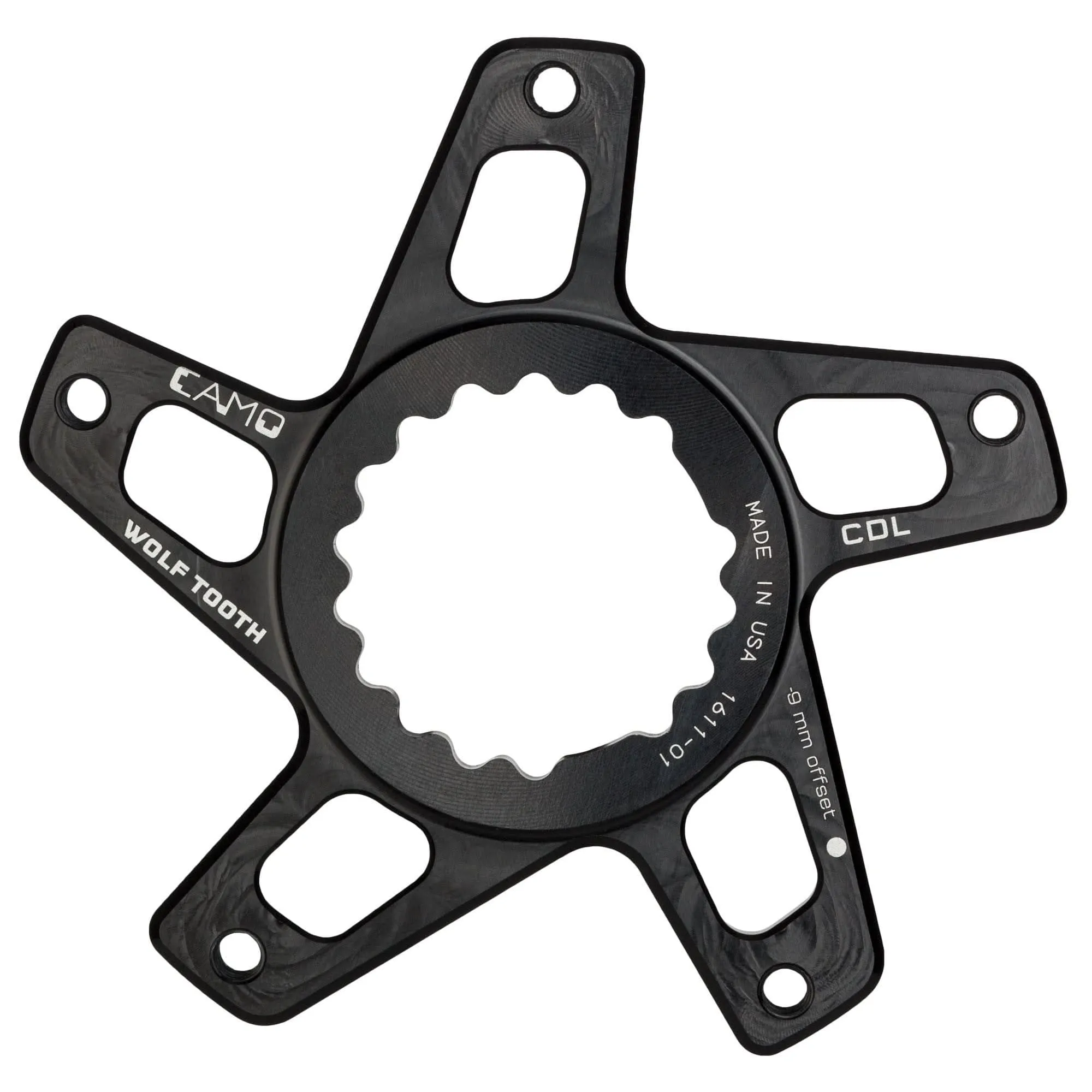

M9 (minus 9mm - standard dish towards the frame)

For use on standard (non-Ai offset) mountain bikes

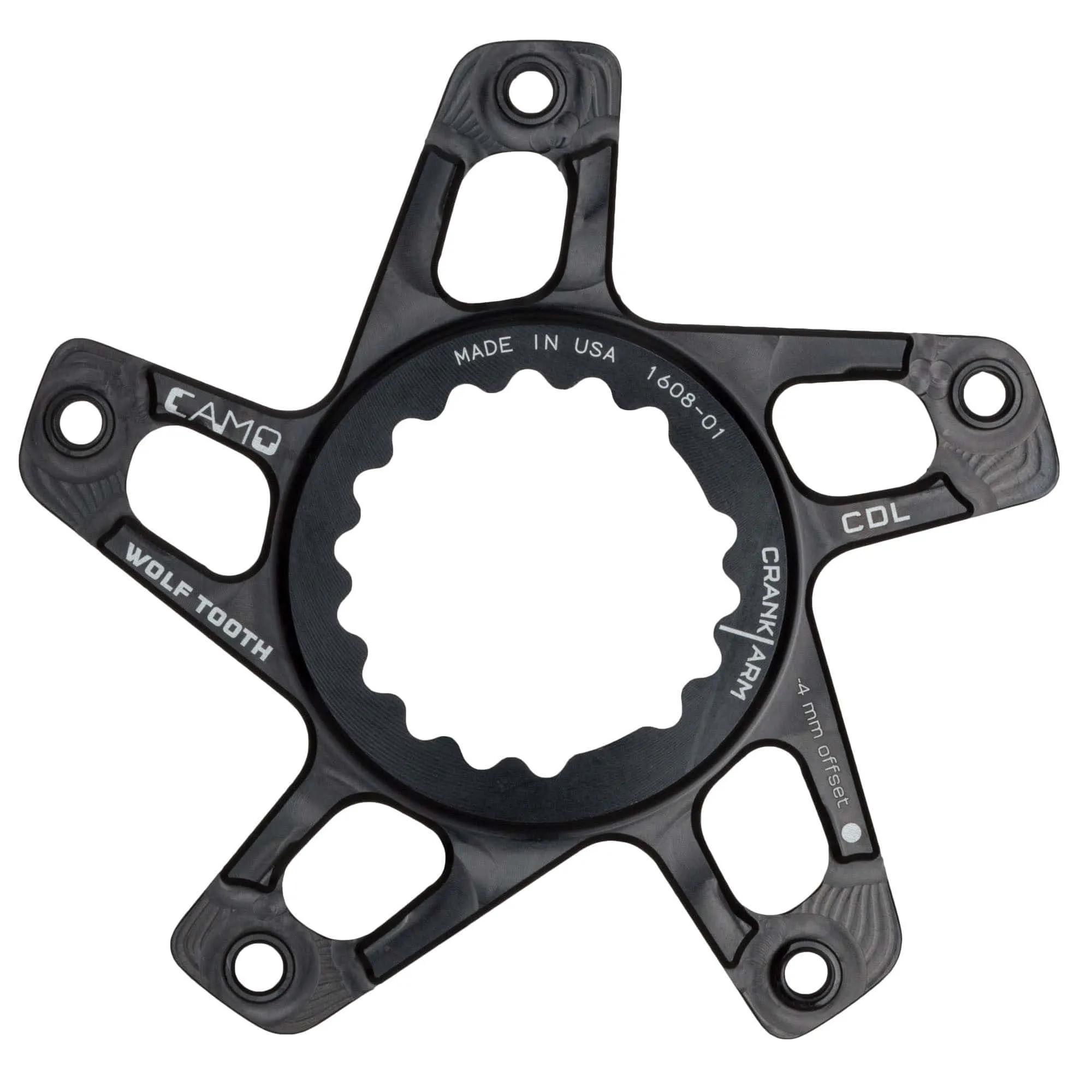

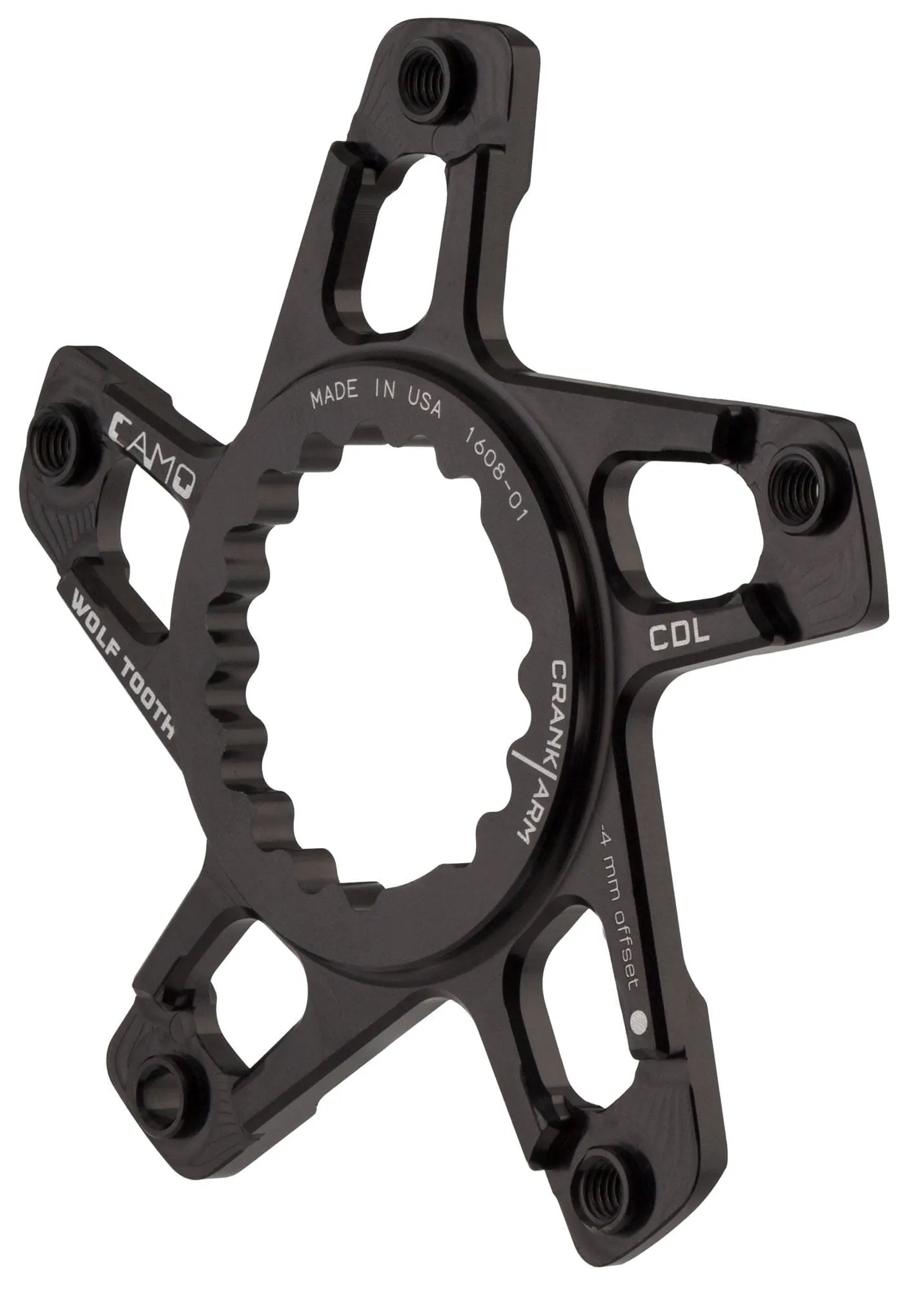

M4 (minus 4mm - Ai offset)

For use on Cannondale bikes with the Ai (asymmetric integration) offset rear triangle AND all Cannondale 27.5 Plus bikes
For use on 2x Fat CAAD ()

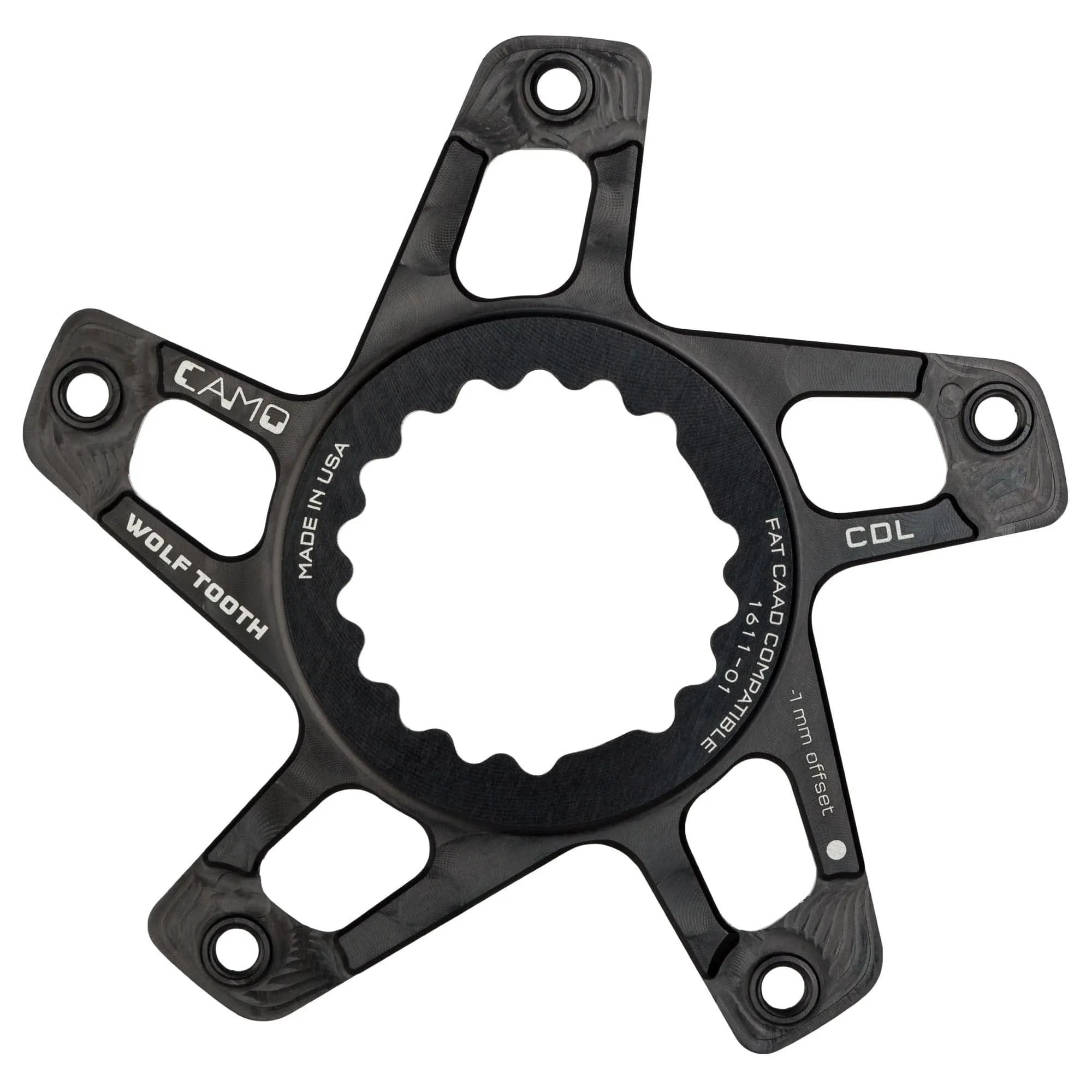

M1 (minus 1mm - dished towards the frame)

For use on 1x Fat CAAD bikes ()

M1 (minus 1mm - dished towards the frame)

Cannondale cyclocross and road bikes (38T max CAMO chainring)
Ai cyclocross bikes with 155mm spindle (38T max CAMO chainring)

FSA direct mount cranksets using boost chainline are compatible with Camo M9 (minus 9mm) offset spider when using the available separately.
can be purchased separately, but come with stainless steel bolts if you don't order them.
All Camo Spiders are not compatible with Bash Guide ISCG05

Installation notes:

You will be able to access all bolts without removing the spider
Line up the little dot on the ring with the dot on the spider. Don't worry, you cannot install the ring in the wrong rotational orientation.
Be sure the bosses on the spider "plug in" to the chainring.
Torque bolts only to 4-5 Nm and use blue Loctite threadlock
