Name: CAMO BashSpider for Shimano
SKU: 338905

NOTE: This is a ONLY. A is required to complete this system.

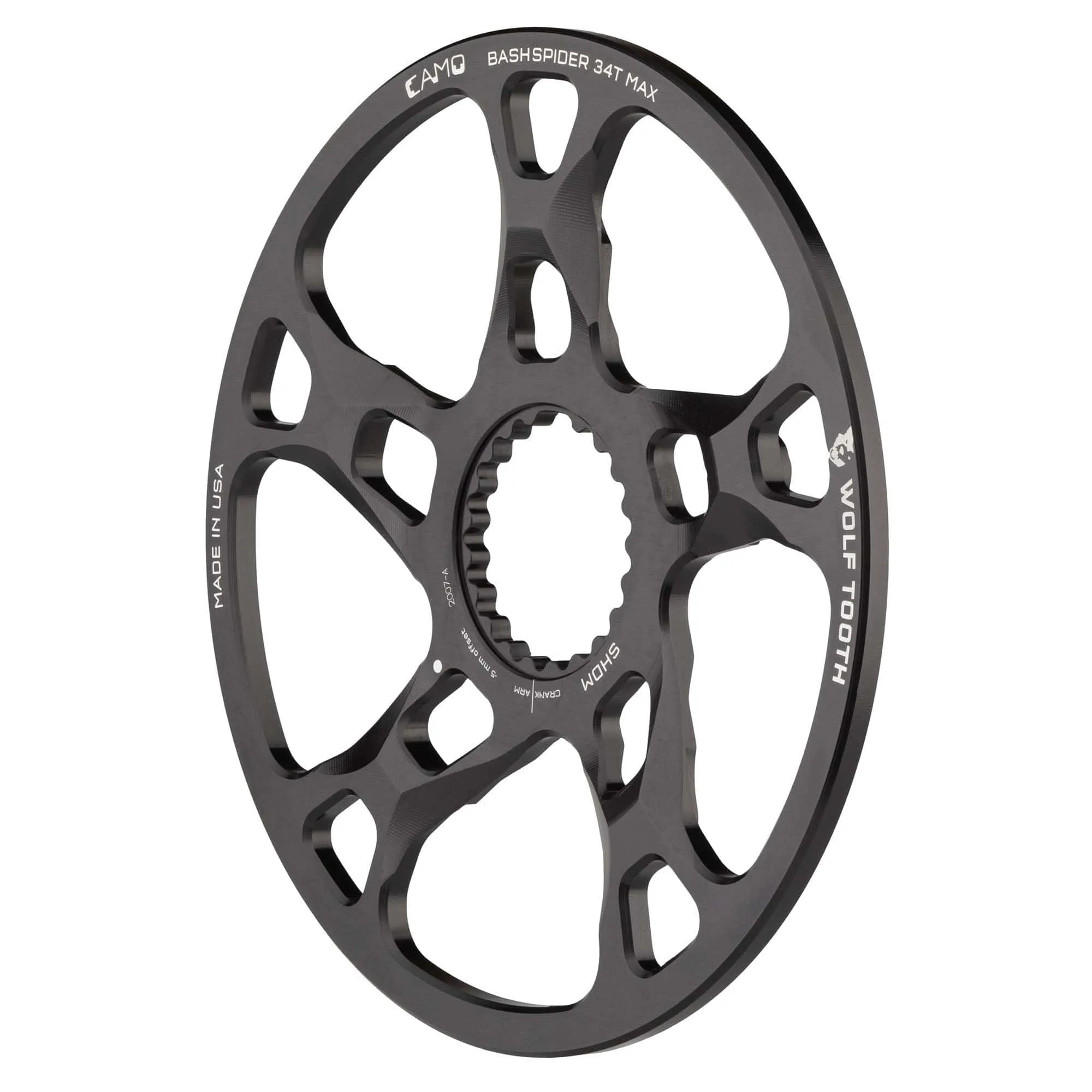

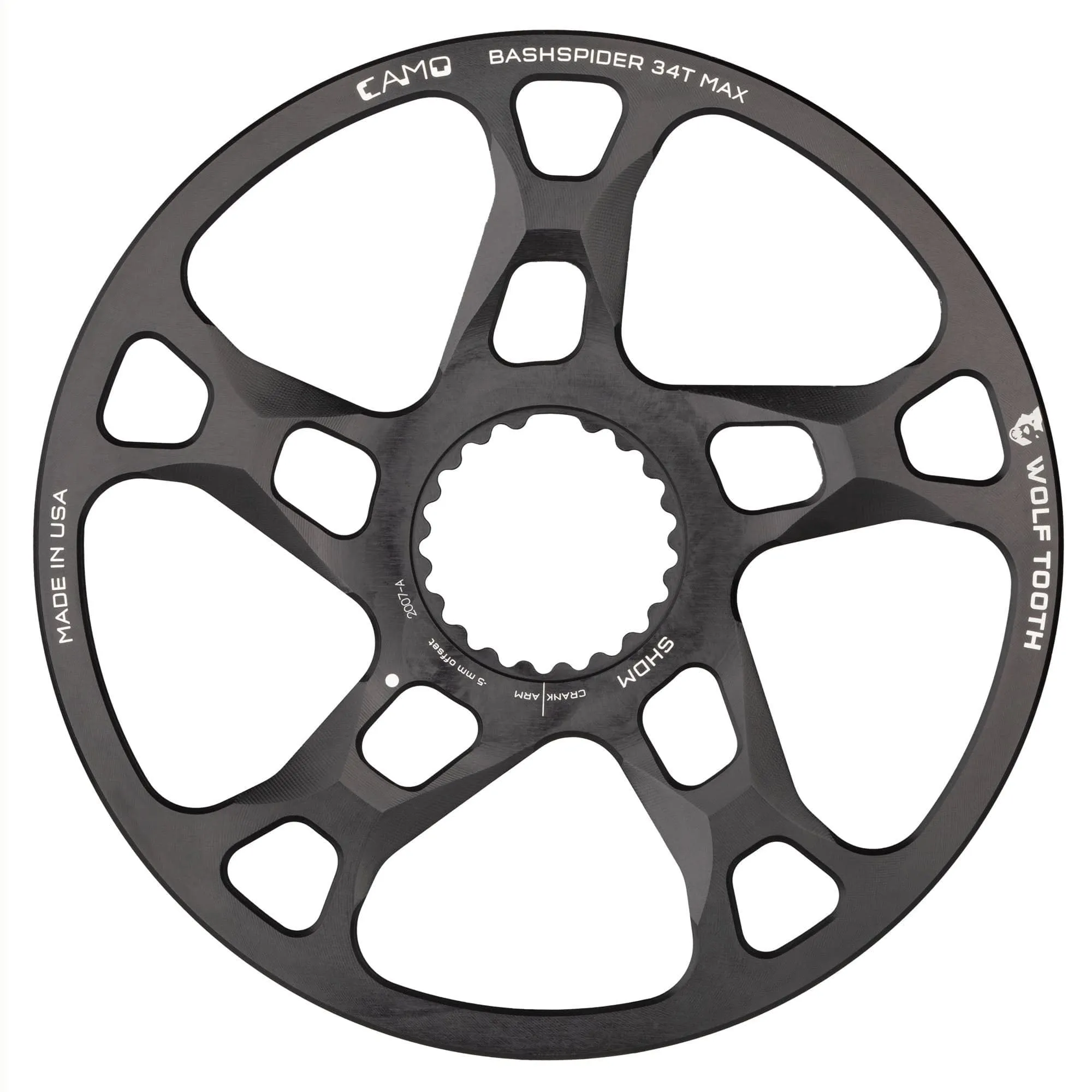

The CAMO BashSpider is the world's only crankset-mounted boost bash ring. This is a spider with an integrated bash ring for use with direct mount Shimano cranksets. The CAMO BashSpider pairs with a

The CAMO chainring system was created by the Wolf Tooth engineers for Chainline And Material Optimization on direct mount style Chainrings. The key advantages include:

Perfect chainline - for wear and shifting precision
Optimal material usage - for weight, stiffness, and wear
Price - for less expensive replacement chainrings
Swapping - Very fast chainring change out with 5 small bolts and no nuts
Availability - Wolf Tooth is the one-stop-shop for your direct mount needs...round or oval, stainless or aluminum, and no matter the crankset
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability

Compatibility

This spider is designed to work with Shimano cranksets that have a removable spider.
Not compatible with the XTR 9100-1, XTR 9100-2, or XTR 9130 crankset (narrow q-factor version)
Currently available only for Boost chainline. The number and letter refer to the mm offset and direction from the mounting face to the centerline of the teeth:

M5 (minus 5mm - Boost)

dished towards the frame

are included with each spider but can also be purchased separately in a variety of colors
Only works with CAMO 28T-34T round or 30T-32T elliptical chainrings

Installation notes:

You will be able to access all bolts without removing the spider
Line up the little dot on the ring with the dot on the spider. You cannot install the ring in the wrong rotational orientation.
Be sure the bosses on the spider "plug in" to the chainring.
Torque bolts only to 4-5 Nm and use blue Loctite threadlocker
